PCLPXP model

What's New in the PCLPXP Series?

The new Premium CHOICE Low Profile XP Series (PCLPXP) features an ultra-low profile that allows easy installation into a wall, eliminating the need for a radiation damper to meet fire-resistance requirements in building code.

  • Updated Plastic Blower
  • Extremely quiet (1.5 sones max) operation
  • Energy efficient (24.7 watts max)
  • Lower profile for easier wall installation

Overview

Features & Construction

  • Low profile housing design for easy wall or ceiling installation
  • Quiet operation 0.7 to 2.0 sones
  • Totally enclosed condenser motor for long life
  • Built-in backdraft damper
  • Robust steel housing and decorative grille.

Optional Accessory

PCLPR4-3 4” Oval to 3” Round Reducer
The PCLPR4-3 is a 4” oval to 3” round duct reducer that can be used to quickly and easily connect 3” round duct to the PCLP80, PCLP100, PCLP80XP and PCLP100XP. This is a common duct size used with low profile bathroom exhaust fans installed in 2x4 walls.


Certifications & Listings

Please see the Submittal of each PCLP model for the certified performance data.

  • CALGreen (Title 24 Compliant)
  • cETLus Listed
  • ENERGY STAR® qualified
  • HVI Certified

Applications

  • Outside Air Solutions
    Improve IAQ through good, better, and best solutions from S&P.
  • Residential Bathroom Exhaust
    Improve IAQ by removing excess humidity, odors, and VOC's from the residential bathroom.
  • Commercial Bathroom Exhaust
    Improve IAQ by removing excess humidity, odors, and VOC's from the commercial bathroom.
  • Local Exhaust
    Local demand-controlled exhaust is intended to remove contaminants from kitchens and bathrooms.
  • Dwelling Unit Ventilation
    Exhaust air at a continuous rate to provide fresh air to the dwelling unit.

Product Specifications

HVI Performance Data

Part ID Duct
Diameter
(oval)
HVI Certified
CFM 0.1" SP
HVI Certified
CFM 0.25" SP
Sones @ 0.1" SP Frequency
(Hz)
Voltage
(V)
Efficacy @ 0.1" SP
(CFM/Watts)
Max Power
(Watts)
Current
(Amps)
PCLP80 4" 80 62 1.2 60 120 3 25.9 0.23
PCLP100 4" 100 86 2 60 120 4 24.6 0.21
PCLP80XP 4" 80 66 0.7 60 120 4.7 17.5 0.2
PCLP100XP 4" 100 86 1.5 60 120 4.2 24.7 0.21

Dimensions

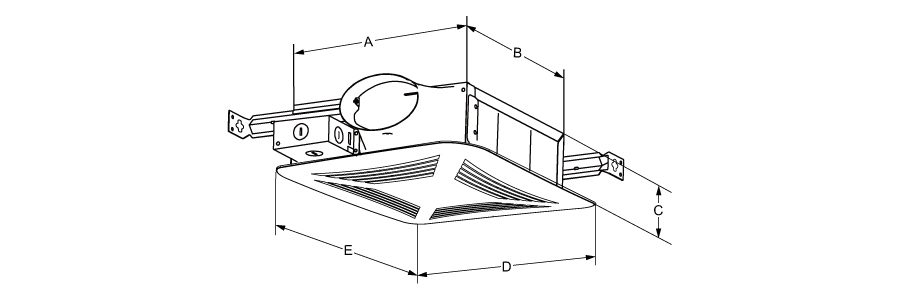

Dimensional drawing for the low profile models.
Part ID W D H X Y Avg. Ship Weight (lbs)
PCLP80 10.25 10.25 3.75 13 14 7
PCLP100 10.25 10.25 3.75 13 14 7
PCLP80XP 10.25 10.25 3.375 13 14 7
PCLP100XP 10.25 10.25 3.375 13 14 7

Dimensions are displayed in inches.

Options & Accessories

Contractor Pack

For convenient installation of specific sizes, the PCLP models are available in packs of four with all the parts needed for the fan to be installed by the contractor after the drywall and painting are complete.

The orange plus sign () is used to denote a new product of the PCLPXP series.

Description Literature
Housing Kit The contractor kit includes the fan housing and hanger brackets.
PCLPH
PCLP contractor pack housings (4-pack).

PCLPHXP
PCLPXP contractor pack housings (4-pack).

Motor and Grille Kit The contractor kit includes the motor, motor plate, wheel, and standard grille.
PCLP80F
PCLP80 contractor pack motor and grille (4-pack).

PLCP100F
PCLP100 contractor pack motor and grille (4-pack).

PCLP80XPF
PCLP80XP contractor pack motor and grille (4-pack).

PCLP100XPF
PCLP100XP contractor pack motor and grille (4-pack).


Plug-&-Play Grilles

Image Description Literature
Lighted Grille Kit Lighted Grille for PCLP and PCLPXP
Image of lighted grille kit with LED array. PCLPLEDK
LED Lighted Grille Kit
Submittal

Plug-&-Play Modules

Image Description Literature
Modules for PCLP Series
Image of a humidity sensor Plug-&-Play option. PCLPHS
Humidity Sensor
Submittal
Image of a speed control Plug-&-Play option. PCLPSC
Speed Control
Submittal
Modules for PCLPXP Series
Image of a humidity sensor Plug-&-Play option. PCLPHSP
Humidity Sensor
Submittal
Image of a speed control Plug-&-Play option. PCLPSCP
Speed Control
Submittal

Wall Control Options

Image Description Literature
Image of a 3-switch control. PC3S
3-Switch Control
Submittal
Image of a delay timer switch. FLTD-60
Fan/Light Delay Timer Switch
Submittal
Image of a rotary spring wound timer. SRT-30
Rotary Spring Wound Timer
Submittal
Image of a electronic push button timer. EPBT-60
Electronic Push Button Timer
Submittal
Image of a bathroom ventilation control. FT622
ASHRAE 62.2 Bath Fan Ventilation Control
Submittal
Image of a programmable fan timer. FT247
Programmable Fan Timer
Submittal

Accessories

Image Description Literature
Image of a plastic louvered shutter. PER-W
Plastic Louvered Shutter
Submittal
Image of a aluminum exterior fixed grille. GRA
Aluminum Exterior Fixed Grille
Submittal
Image of a roof curb. RC
Roof Cap
Submittal
Image of a round adjustable metal elbow. ME
Round Adjustable Metal Elbow
Submittal
Image of a duct connector. DC
Duct Connector

Image of a worm clamp. WC
Worm Clamp


Radiation Damper and Kits

Radiation Damper (PCRD)

  • 3-hour rating ceiling radiation dampers
  • Ceramic fiber with fiberglass cover fire blanket
  • Roll-formed frame 22 g. galvanized steel
Image Description
Radiation Dampers for PCLP and PCLPXP
Image of the PCLPLEDKRD radiation damper kit. PCRD
Ceiling Radiation Damper
IOM Submittal
Image of the radiation damper. PCLPLEDKRD
PCLP LED Light Grille & Radiation Damper
IOM Submittal
